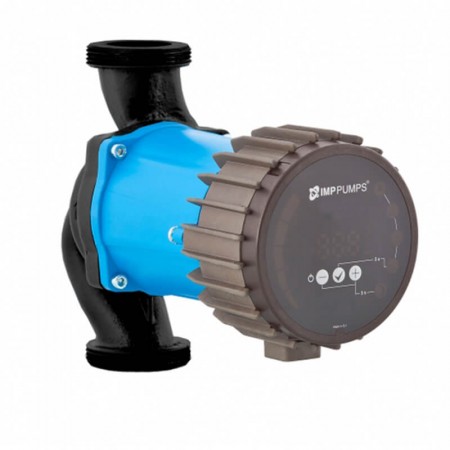

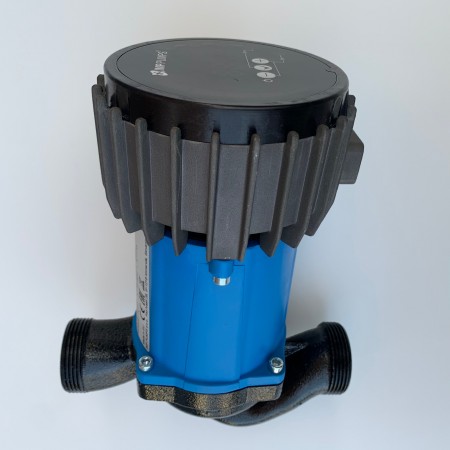

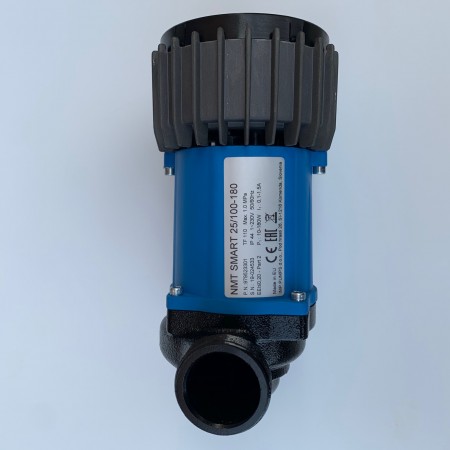

NMT SMART 25/100-180 basic threaded pump

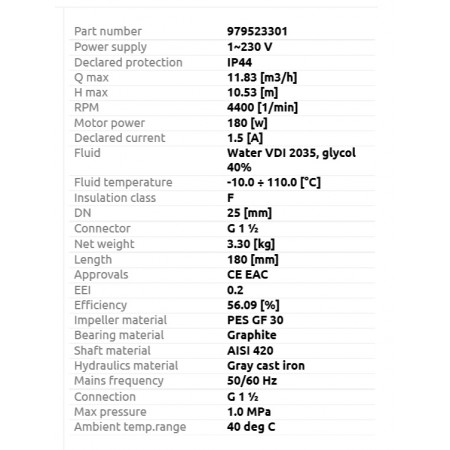

 230V, IP44, Q, maks 11.83 [m3/h], H, max 10.53 [m],  RMP 4400 [1/min]

NMT SMART - NMT SMART / Electronically regulated circulating pump Heating, Climatisation



Basic threaded pump.

Electronically controlled high-efficiency pumps for heating, air conditioning, cooling and sanitary water. The NMT (new motor technology) circulating pumps are used for the transfer of liquid medium within systems
for hot-water heating, air-conditioning and ventilation. They are designed as single or twin variable-speed pumping aggregates where the speed is regulated by electronic device. The pump constantly measures pressure
and flow and adjusts the speed according to the set pump mode.

Electronically controlled wet running circulating pump: For all heating systems, air conditioning, closed cooling circuits and industrial systems, used in accordance with VDI 2035.

Product details:

    ECM permanent magnet technology with high energy efficiency
    LED display for control
    built-in electric protection
    easy handling and instalation, low noise operation and automatic venting
    Automatic operation
    Night mode
    robust and compact construction for long life
    SMART C with NMTC communication module (option): Ethernet, Modbus RTU, analog control input 0-10V, 3 analog inputs/outputs, 1 rele output

Permissible mediums Water, mixed with glycol, parameters must be checked in the mixture of water with over 20% of glycol. Pure, non-explosive liquid media free of mineral oils and solid particles. Medium temperature from – 10 °C to + 110 °C, ambient temperature with max. surroundings temperature 40 °C.
